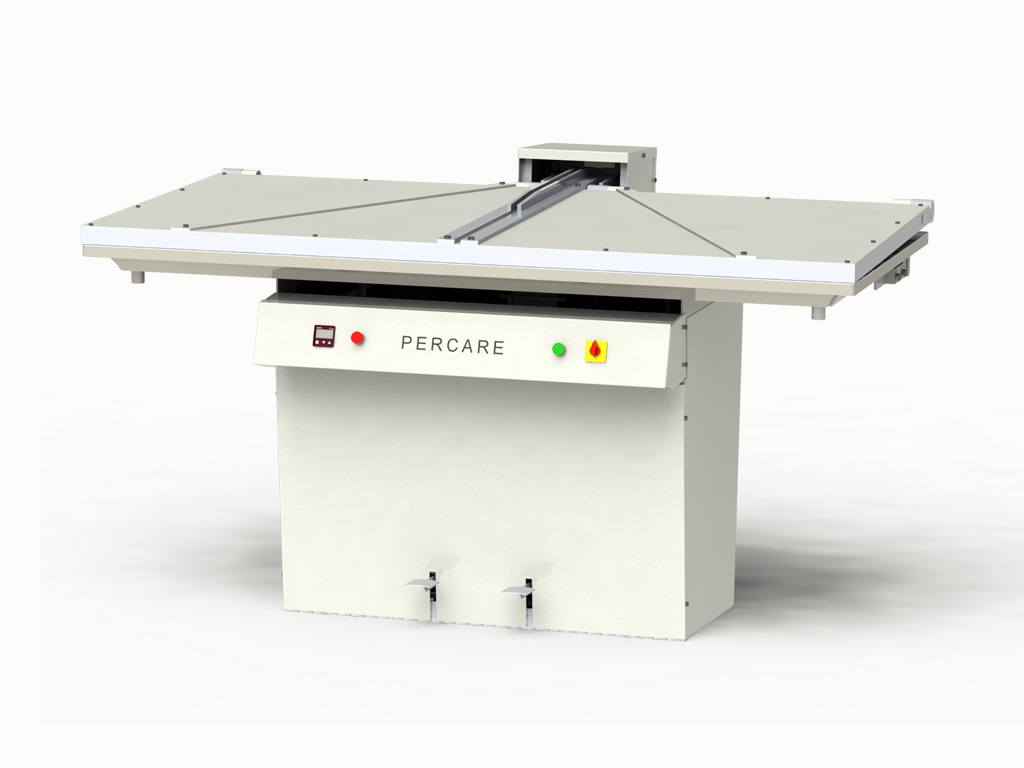

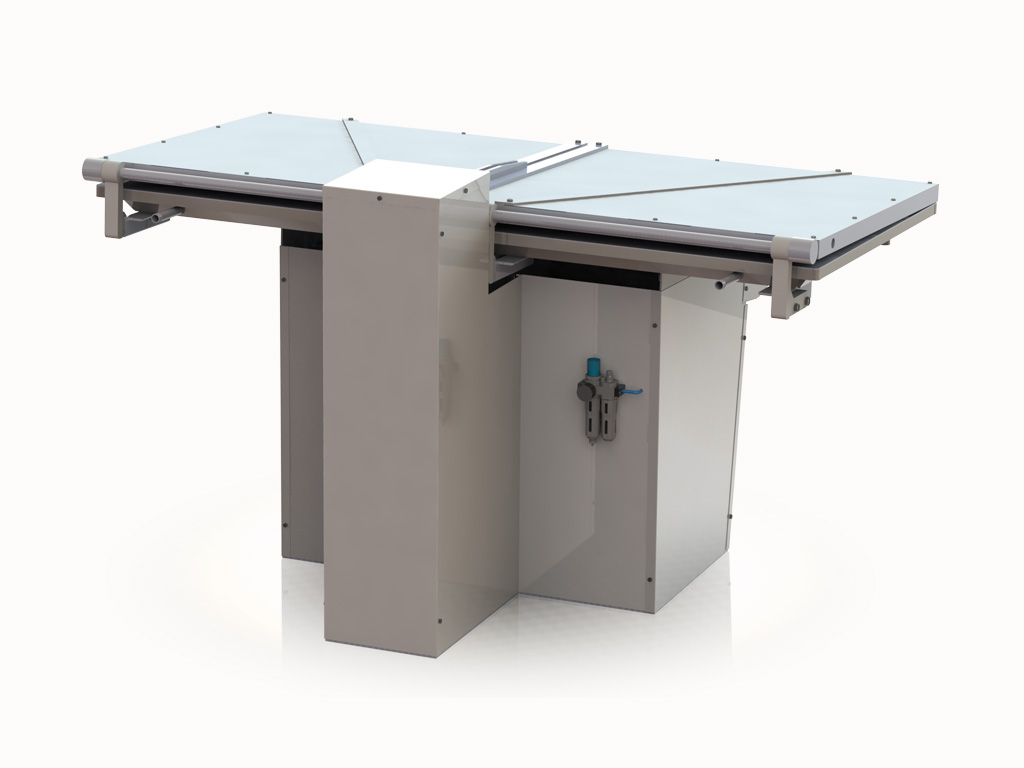

Flat bed steam press for max. heat transfer and perfect finish.

Back to Products

Steam Bed Presses are ideal for every type of clothes which needs uniform steam throughout the whole bed. The timer controlled Double bed press gives more heat from both beds with little pressure to get perfect finish. It's pneumatic controlled cylinder gives ease to operator and increases production.

Download
Brochure

Technical Specifications

Model Units                   SPD-63/SPD-63S* SPS-63 SPS-74
Bed Dimension        (L x D) mm (in.) 1830(72) x 920(36) 1830(72) x 920(36) 2135(84) x 1220(48)
Overall Dimension    (L x D) mm (in.) 1830(72) x 1260(50) 1830(72) x 1000(40) 2135(84) x 1320(52)
Bed Height mm (in.) 890(35) 890(35) 890(35)
Blower Motor Kw (HP) 0.75 (1) 0.75 (1) 0.75 (1)
Steam Pressure bar (psi) 3 - 8 (45 to 115) 3 - 8 (45 to 115) 3 - 8 (45 to 115)
Compressed Air Pressure bar (psi) 6 (90) - 8 (180) N.A N.A
Steam Required per hr. (approx.) Kg (lbs) 25-35 (55-77) 25-30 (55-66) 25-35 (55-77)
No. of Pressing Bed No. One Suction and Steaming Bed. Second Upper Steam Heated moving Bed. Only Suction and Steaming Bed. Only Suction and Steaming Bed.

Standard Features


  • Aluminium sheets on both beds for better heat transfer,
    stains free pressing and longer machine life.
  • Both beds uses steam to heat the bed.
  • Timer controlled upper Pneumatic bed.
  • Manufactured according to CE rules.
  • Pneumatic controls from World's Best company 'FESTO'.
  • Bed Tested upto 400 P.S.I Hydraulic pressure for optimum safety.
  • Larger suction area for optimum stabilization and faster cooling.
  • Powerful Aluminum Blower to remove residual moisture.
  • Pressure Tested upto 400 P.S.I Hydraulic pressure for complete safety.
  • Insulation on Both Beds to save Heat energy.

Optional Features


  • Fixed or Movable pedals assembly.
  • Upper Bed with Steam Output for Max. Heat.
